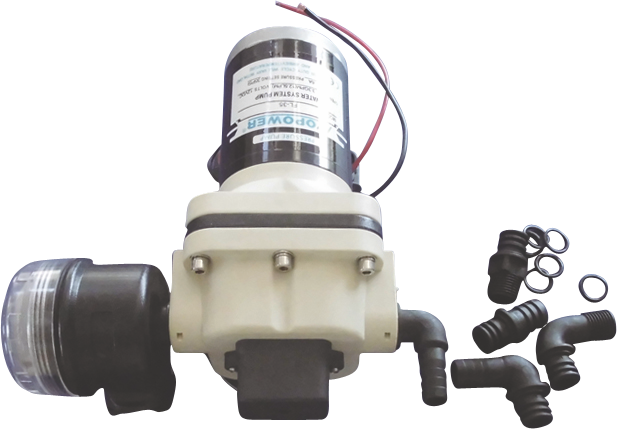

Pump Design: Diaphragm
Wetted Parts: Housing------------------------- Polyproplyene
Diaphragm EPDM
Check Valve-------------------- Viton
Switch Setting: YES
Self-Priming: Up to 4M Vertically Liquid Temperature: 80*0 Max.
Motor Type: DC Motor
MODEL | FLOW RATE | VOLT | PRESSURE | SWITCH | I/O HOSE TAIL | WEIGHT |
FL111012(FLN30) | 10LPM | 12V | 30PSI | YES | 1/2" or 3/4" | 3KGS |
FL111024(FLN31) | 10LPM | 24V | 30PSI | YES | 1/2n or 3/4" | 3KGS |
FL1112512(FLN35) | 12.5LPM | 12V | 35PSI | YES | 1/2" or 3/4" | 3KGS |
FL1112524(FLN34) | 12.5LPM | 24V | 35PSI | YES | 1/2" or 3/4" | 3KGS |
FL111712(FLN40) | 17LPM | 12V | 40PSI | YES | 3/4" | 3KGS |
FL111724(FLN44) | 17LPM | 24V | 40PSI | YES | 3/4" | 3KGS |
FL111712H(FLN40) | 17LPM | 12V | 60-120PSI | YES | 3/4" | 3KGS |
FL111724H(FLN44) | 17LPM | 24V | 60-120PSI | YES | 3/4" | 3KGS |
MODEL | FLOW RATE | VOLT | PRESSURE | SWITCH | I/O HOSE TAIL | WEIGHT |
GP17012 | 17LPM | 12V | 40PSI | YES | 1" or 3/4" | 4.5KGS |
GP17024 | 17LPM | 24V | 40PSI | YES | 1n or 3/4" | 4.5KGS |
GP26012 | 26LPM | 12V | 40PSI | YES | 1" or 3/4" | 4.5KGS |
GP26024 | 26LPM | 24V | 40PSI | YES | 1" or 3/4" | 4.5KGS |
Pump Design: Diaphragm
Wetted Parts: Housing------------------------- Polyproplyene
Diaphragm EPDM
Check Valve-------------------- Viton
Switch Setting: YES
Self-Priming: Up to 4M Vertically Liquid Temperature: 80*0 Max.
Motor Type: DC Motor
MODEL | FLOW RATE | VOLT | PRESSURE | SWITCH | I/O HOSE TAIL | WEIGHT |
FL111012(FLN30) | 10LPM | 12V | 30PSI | YES | 1/2" or 3/4" | 3KGS |
FL111024(FLN31) | 10LPM | 24V | 30PSI | YES | 1/2n or 3/4" | 3KGS |
FL1112512(FLN35) | 12.5LPM | 12V | 35PSI | YES | 1/2" or 3/4" | 3KGS |
FL1112524(FLN34) | 12.5LPM | 24V | 35PSI | YES | 1/2" or 3/4" | 3KGS |
FL111712(FLN40) | 17LPM | 12V | 40PSI | YES | 3/4" | 3KGS |
FL111724(FLN44) | 17LPM | 24V | 40PSI | YES | 3/4" | 3KGS |
FL111712H(FLN40) | 17LPM | 12V | 60-120PSI | YES | 3/4" | 3KGS |
FL111724H(FLN44) | 17LPM | 24V | 60-120PSI | YES | 3/4" | 3KGS |
MODEL | FLOW RATE | VOLT | PRESSURE | SWITCH | I/O HOSE TAIL | WEIGHT |
GP17012 | 17LPM | 12V | 40PSI | YES | 1" or 3/4" | 4.5KGS |
GP17024 | 17LPM | 24V | 40PSI | YES | 1n or 3/4" | 4.5KGS |
GP26012 | 26LPM | 12V | 40PSI | YES | 1" or 3/4" | 4.5KGS |
GP26024 | 26LPM | 24V | 40PSI | YES | 1" or 3/4" | 4.5KGS |
