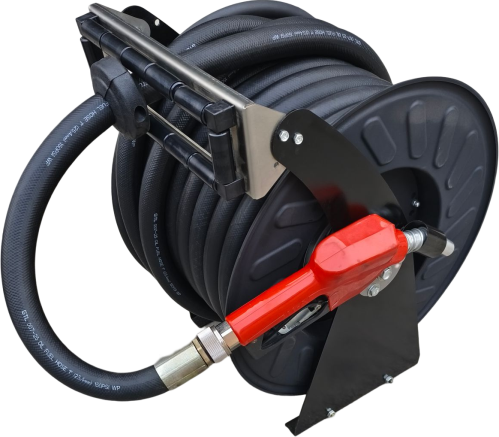

HOSE REEL
USE FOR ADBLUE DEF/UREA DIESEL/GASOLINE PETROL/WATER/FUEL
Plastic drum
stainlsess steel arm and base , or steel arm and base with powder coati ng more cheaper than stianless steel Stain less steel fitting and swivel adapter
Working pressure 20Bar
Model | InIet/outIet Size | Hose | ARM AND BASE | We i ght | Demi sion |
CM006A | 3/4i nch | 6M | STAINLESS STEEL | ||
CM008A | 3/4i nch | 8M | STAINLESS STEEL | 20/24KGS | 55x29x55 |
CM010A | 3/4i nch | 10M | STAINLESS STEEL | 22/24KGS | 55x29x55 |
CM012A | 3/4i nch | 12M | STAINLESS STEEL | 25/28KGS | 55x29x55 |
CM015A | 3/4i nch | 15M | STAINLESS STEEL | 27/30KGS | 55x40x58 |
CM020A | 3/4i nch | 20M | STAINLESS STEEL | 31/34KGS | 55x40x58 |
CM006D | 3/4i nch | 6M | METAL | ||
CM008D | 3/4i nch | 8M | METAL | 21/24KGS | 55x29x55 |
CM010D | 3/4i nch | 10M | METAL | 22/24KGS | 55x29x55 |
CM012D | 3/4i nch | 12M | METAL | 25/28KGS | 55x29x55 |
CM015D | 3/4i nch | 15M | METAL | 27/30KGS | 55x40x58 |
CM020D | 3/4i nch | 20M | METAL | 31/34KGS | 55x40x58 |
CM008D -1 | 1 i nch | 8M | METAL | 21/24KGS | 55x29x55 |
CM012D-1 | 1 i nch | 12M | METAL | 29/33KGS | 55x29x55 |
CM015D-1 | 1 i nch | 15M | METAL | 31/35KGS | 55x40x58 |
CM020D -1 | 1 i nch | 20M | METAL | 36/40KGS | 55x40x58 |
CM008A-H | 3/4i nch Hor i zontaI type | 8M | STAINLESS STEEL | 20/24KGS | 55x29x55 |
CM012A-H | 3/4i nch Hor i zontaI type | 12M | STAINLESS STEEL | 25/28KGS | 55x29x55 |
CM008D-H | 3/4i nch Hor i zontaI type | 8M | METAL | 21/24KGS | 55x29x55 |
CM012D-H | 3/4 i nch Hor i zontaI type | 12M | METAL | 25/28KGS | 55x29x55 |
CM008D-1H | 1inch Hor i zontal type | 8M | METAL | 21/24KGS | 55x29x55 |
CM012D-1H | 1inch Hor i zontaI type | 12M | METAL | 29/33KGS | 55x29x55 |
